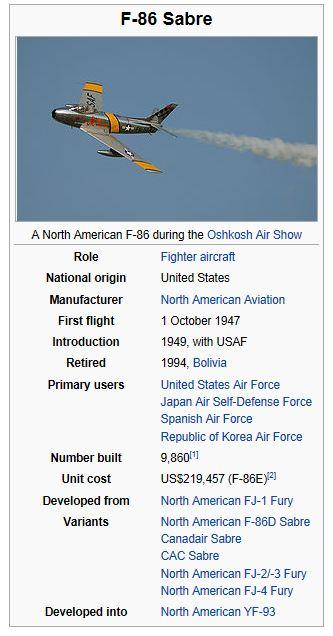

Development
North American had produced the highly successful propeller-powered P-51 Mustang in World War II, which saw combat against some of the first operational jet fighters. By late 1944, North American proposed its first jet fighter to the US Navy which became the FJ-1 Fury. It was an unexceptional transitional jet fighter which had a straight wing derived from the P-51. Initial proposals to meet a United States Army Air Forces (USAAF) requirement for a medium-range, single-seat, high-altitude jet-powered day escort fighter/fighter bomber were drafted in mid-1944.In early 1945, North American Aviation submitted four designs. The USAAF selected one design over the others, and granted North American a contract to build three examples of the XP-86 (eXperimental Pursuit). Deleting specific requirements from the FJ-1 Fury, coupled with other modifications, allowed the XP-86 to be lighter and considerably faster than the Fury, with an estimated top speed of 582 mph (937 km/h), versus the Fury's 547 mph (880 km/h).Despite the gain in speed, early studies revealed the XP-86 would have the same performance as its rivals, the XP-80 and XP-84. It was also feared that, because these designs were more advanced in their development stages, the XP-86 would be canceled.
Crucially, the XP-86 would not be able to meet the required top speed of 600 mph (970 km/h);North American had to quickly come up with a radical change that could leapfrog it over its rivals. The North American F-86 Sabre was the first American aircraft to take advantage of flight research data seized from the German aerodynamicists at the end of the war. This data showed that a thin swept wing could greatly reduce drag and delay compressibility problems which had bedeviled even prop-powered fighters such as the Lockheed P-38 Lightning approaching the speed of sound. By 1944, German engineers and designers had established the benefits of swept wings based on experimental designs dating back to 1940. Study of the data showed that a swept wing would solve their speed problem, while a slat on the wing's leading edge which extended at low speeds would enhance low-speed stability.
Because development of the XP-86 had reached an advanced stage, the idea of changing the sweep of the wing was met with resistance from some senior North American staff. Despite stiff opposition, after good test results were obtained in wind tunnel tests, the swept-wing concept was eventually adopted. Performance requirements were met by incorporating a 35° swept-back wing, using NACA 4-digit modified airfoils, using NACA 0009.5-64 at the root and NACA 0008.5-64 at the tip.with an automatic slat design based on that of the Messerschmitt Me 262 and an adjustable stabilizer.It should be noted that many Sabres had the "6-3 wing" (a fixed-leading edge with 6 inches extended chord at the root and 3 inches extended chord at the tip) retrofitted after combat experience was gained in Korea.This modification changed the wing airfoils to the NACA 0009-64 mod at the root and the NACA 0008.1-64 mod at the tip
Delays caused by the major redesign meant that manufacturing did not begin until after World War II. The XP-86 prototype, which would lead to the F-86 Sabre, was rolled out on 8 August 1947. At the controls of George Welch, the maiden flight occurred on 1 October 1947 from Muroc Dry Lake (now Edwards AFB), California.
The United States Air Force's Strategic Air Command had F-86 Sabres in service from 1949 through 1950. The F-86s were assigned to the 22nd Bomb Wing, the 1st Fighter Wing and the 1st Fighter Interceptor Wing.The F-86 was the primary U.S. air combat fighter during the Korean War, with significant numbers of the first three production models seeing combat.
The F-86 Sabre was also produced under license by Canadair, Ltd., in the Province of Quebec as the Canadair Sabre. The final variant of the Canadian Sabre, the Mark 6, is generally rated as having the highest capabilities of any Sabre version made anywhere. The last Sabre to be manufactured by Canadair (Sabre #1815) is now kept in the Western Canada Aviation Museum's (WCAM) permanent collection in Winnipeg, Manitoba, after being donated by the Pakistan Air Force.
Breaking sound barrier and other records
Several people involved with the development of the F-86, including the chief aerodynamicist for the project and one of its other test pilots, claimed that North American test pilot George Welch had unofficially broken the sound barrier in a dive with the XP-86 while on a test flight on 1 October 1947. Chuck Yeager broke the sound barrier on 14 October 1947 in the rocket-propelled Bell X-1 during level flight, making it the first true supersonic aircraft. Five years later, on 18 May 1953, Jacqueline Cochran became the first woman to break the sound barrier, flying a "one-off" Canadian-built F-86 Sabre Mk 3, alongside Chuck Yeager.Col. KK Compton won the 1951 Bendix air race in an F-86A with an average speed of 553.76 mph.
Specifications (F-86F-40-NA)
General characteristics
Crew: 1
Length: 37 ft 1 in (11.4 m)
Wingspan: 37 ft 0 in (11.3 m)
Height: 14 ft 1 in (4.5 m)
Wing area: 313.4 sq ft (29.11 m²)
Empty weight: 11,125 lb (5,046 kg)
Loaded weight: 15,198 lb (6,894 kg)
Max. takeoff weight: 18,152 lb (8,234 kg)
Powerplant: 1 × General Electric J47-GE-27 turbojet, 5,910 lbf (maximum thrust at 7.950 rpm for five min) (26.3 kN)
Fuel provisions Internal fuel load: 437 US gallons (1,650 L)), Drop tanks: 2 x 200 US gallons (760 L) JP-4 fuel
Performance
Maximum speed: 687 mph (1,106 km/h) at sea level at 14,212 lb (6,447 kg) combat weight
also reported 678 mph (1,091 km/h) and 599 at 35,000 feet (11,000 m) at 15,352 pounds (6,960 kg). (597 knots (1,106 km/h) at 6446 m, 1,091 and 964 km/h at 6,960 m.)
Stall speed: 124 mph (power off) (108 knots (200 km/h))
Range: 1,525 mi, (2,454)
Service ceiling: 49,600 ft at combat weight (15,100 m)
Rate of climb: 9,000 ft/min at sea level (45.72 m/s)
Wing loading: 49.4 lb/ft² (236.7 kg/m²)
lift-to-drag: 15.1
Thrust/weight: 0.38
ArmamentGuns: 6 × 0.50 in (12.7 mm) M2 Browning machine guns (1,602 rounds in total)
Rockets: variety of rocket launchers; e.g: 2 × Matra rocket pods with 18× SNEB 68 mm rockets each
Bombs: 5,300 lb (2,400 kg) of payload on four external hardpoints, bombs are usually mounted on outer two pylons as the inner pairs are wet-plumbed pylons for 2 × 200 US gallons (760 L) drop tanks to give the Sabre a useful range. A wide variety of bombs can be carried (max standard loadout being 2 × 1,000 lb bombs plus two drop tanks), napalm bomb canisters and can include a tactical nuclear weapon.
|
